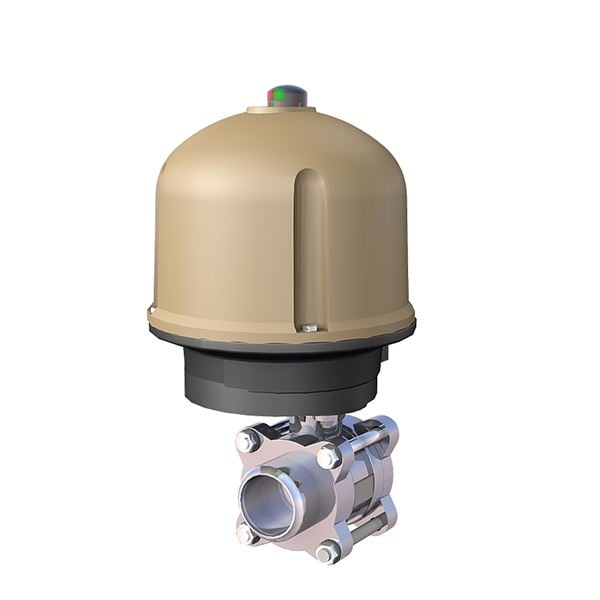

Elektriskt manöverdon AT 3941 monterad på kulventiler 3534S
| Huvudmaterial | Sammansatt enhet |
|---|
| Artikelnummer | Utförande typ | DN | PN | Matningsspänning | Antal | ||
|---|---|---|---|---|---|---|---|
| AT 3534S15AQ230V | Automation | 15 | 63 | 230VAC | 2025-01-02 | 16 900 SEK | |
| AT 3534S15AQ24VDC | Ventiler | 15 | 63 | 24VDC | 2025-01-02 | 17 800 SEK | |
| AT 3534S20AQ230V | Automation | 20 | 63 | 230VAC | 2025-01-02 | 17 200 SEK | |
| AT 3534S20AQ24VDC | Ventiler | 20 | 63 | 24VDC | 2025-01-02 | 18 100 SEK | |
| AT 3534S25AQ230V | Automation | 25 | 63 | 230VAC | 2025-01-02 | 16 000 SEK | |
| AT 3534S25AQ24VDC | Automation | 25 | 63 | 24VDC | 2025-01-02 | 17 000 SEK | |
| AT 3534S32AQ230V | Automation | 32 | 63 | 230VAC | 2025-01-02 | 16 900 SEK | |
| AT 3534S32AQ24VDC | Ventiler | 32 | 63 | 24VDC | 2025-01-02 | 19 000 SEK | |
| AT 3534S40AQ230V | Ventiler | 40 | 63 | 230VAC | 2025-01-02 | 18 000 SEK | |
| AT 3534S40AQ24VDC | Ventiler | 40 | 63 | 24VDC | 2025-01-02 | 19 000 SEK | |
| AT 3534S50AQ230V | Ventiler | 50 | 63 | 230VAC | 2024-12-26 | 19 600 SEK | |
| AT 3534S50AQ24VDC | Ventiler | 50 | 63 | 24VDC | 2025-01-02 | 20 500 SEK | |
| AT 3534S65AQ230V | Automation | 65 | 63 | 230VAC | 2025-01-02 | 31 000 SEK | |
| AT 3534S65AQ24VDC | Automation | 65 | 63 | 24VDC | 2025-01-02 | 31 100 SEK | |
| AT 3534S80AQ230V | Automation | 80 | 63 | 230VAC | 2025-01-02 | 33 800 SEK | |
| AT 3534S80AQ24VDC | Ventiler | 80 | 63 | 24VDC | 2025-01-02 | 33 900 SEK | |
| AT 3534S100AQ230V | Automation | 100 | 63 | 230VAC | 2025-01-02 | 41 400 SEK | |
| AT 3534S100AQ24VDC | Automation | 100 | 63 | 24VDC | 2025-02-13 | 41 600 SEK |
Ventil med elektrisk manöverdon för avstängning och av flöde.
Reach datum: 2024-11-22

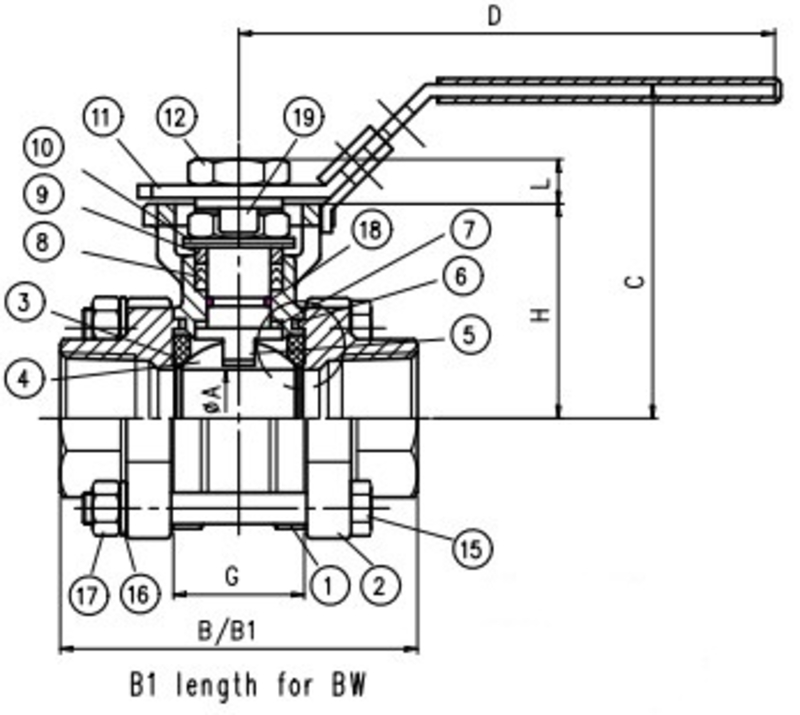

| Pos | Komponent | Material | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | Hus | Aluminium | ||||||
| 2 | Kåpa* | Aluminium | ||||||
| 3 | Drivbussning | Stål | ||||||
| *Epoxymålad RAL 1014, C4 enligt ISO 12944 | ||||||||
| Pos | Komponent | Material |
|---|---|---|
| 1 | Ventilhus | Syrafast stål AISI 316 (1.4408, CF8M) |
| 2 | Ändstycke | Syrafast stål AISI 316 (1.4408, CF8M) |
| 3 | Sätespackningar | PTFE (polytetrafluoreten) |
| 4 | Kula | Syrafast stål AISI 316 (1.4408, CF8M) |
| 5 | Spindel | Syrafast stål AISI 316 (1.4408, CF8M) |
| 6 | Hus/spindelpackning | PTFE (polytetrafluoreten) |
3-delad kulventil med färdigmonterat elektriskt manöverdon. Konstruktionen är testkörd vid leverans.
Huvudmaterial: Sammansatt enhet
Ingående material: Sammansatt enhet
Temperatur (°C): -20 - 60
Temperatur noteringar: Temperaturangivelse avser komplett konstruktion.
| Artikelnummer | Maximalt moment MAST (Nm) | Anslutning enligt ISO 5211 | Drivbussning | Startström (A) | Effektförbrukning (kW) |
|---|---|---|---|---|---|
| 3941-5 | 50 | F05/F07 | 14x14mm | 0.7 | 0.015 |
| 3941-5-24VDC | 50 | F05/F07 | 14x14mm | 8 | 0.03 |
| 3941-10 | 100 | F05/F07 | 19x19mm | 0.7 | 0.015 |
| 3941-10-24VDC | 100 | F05/F07 | 19x19mm | 8 | 0.03 |
| 3941-10-400V | 100 | F05/F07 | 19x19mm | 0.5 | 0.03 |
| 3941-15 | 150 | F05/F07 | 19x19mm | 1.1 | 0.03 |
| 3941-15-24VDC | 150 | F05/F07 | 19x19mm | 8 | 0.03 |
| 3941-15-400V | 150 | F05/F07 | 19x19mm | 0.5 | 0.03 |
| 3941-25 | 250 | F07/F10 | 19x19mm | 1.4 | 0.04 |
| 3941-25-24VDC | 250 | F07/F10 | 19x19mm | 10 | 0.05 |
| 3941-25-400V | 250 | F07/F10 | 19x19mm | 0.5 | 0.04 |
| 3941-50 | 500 | F07/F10 | 27x27mm | 1.7 | 0.06 |
| 3941-50-400V | 500 | F07/F10 | 27x27mm | 0.8 | 0.07 |
| 3941-80 | 800 | F10/F12 | 27x27mm | 1.7 | 0.06 |
| 3941-80-400V | 800 | F10/F12 | 27x27mm | 0.75 | 0.07 |
För korrekt installation se respektive produkts bruksanvisning.
