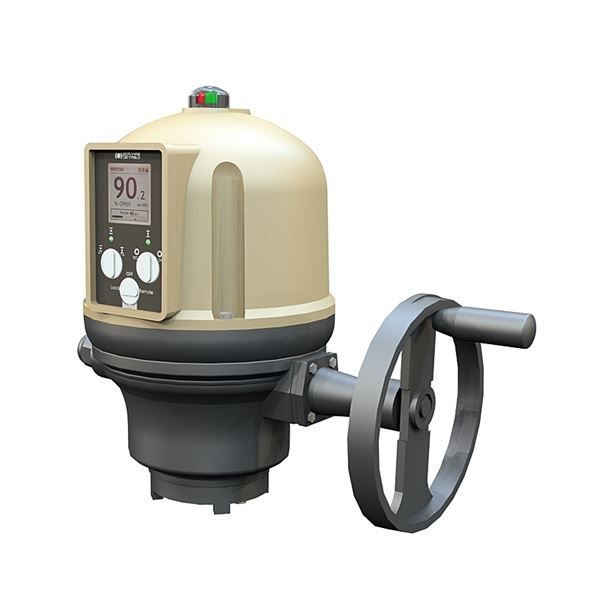

Elektriskt positionerande manöverdon AT 3941-POS monterad på vridspjällventiler AT 2311.
| Huvudmaterial | Sammansatt enhet |
|---|
| Artikelnummer | Utförande typ | DN | PN | Matningsspänning | Antal | ||
|---|---|---|---|---|---|---|---|
| AT 2311-50AQR230V | Automation | 50 | 16 | 230VAC | 2025-02-26 | 41 400 SEK | |
| AT 2311-50AQR24VDC | Automation | 50 | 16 | 24VDC | 2025-02-26 | 41 600 SEK | |
| AT 2311-65AQR230V | Automation | 65 | 16 | 230VAC | 2025-09-03 | 41 400 SEK | |
| AT 2311-65AQR24VDC | Automation | 65 | 16 | 24VDC | 2025-09-03 | 41 600 SEK | |
| AT 2311-80AQR230V | Automation | 80 | 16 | 230VAC | 2025-09-03 | 41 500 SEK | |
| AT 2311-80AQR24VDC | Automation | 80 | 16 | 24VDC | 2025-09-03 | 41 700 SEK | |
| AT 2311-100AQR230V | Automation | 100 | 16 | 230VAC | 2025-09-03 | 41 700 SEK | |
| AT 2311-100AQR24VDC | Automation | 100 | 16 | 24VDC | 2025-09-03 | 42 100 SEK | |
| AT 2311-125AQR230V | Automation | 125 | 16 | 230VAC | 2025-09-03 | 42 800 SEK | |
| AT 2311-125AQR24VDC | Automation | 125 | 16 | 24VDC | 2025-09-03 | 43 200 SEK | |
| AT 2311-150AQR230V | Automation | 150 | 16 | 230VAC | 2025-09-03 | 43 800 SEK | |
| AT 2311-150AQR24VDC | Automation | 150 | 16 | 24VDC | 2025-09-03 | 44 200 SEK | |
| AT 2311-200AQR230V | Automation | 200 | 16 | 230VAC | 2025-09-03 | 47 400 SEK | |
| AT 2311-250AQR230V | Automation | 250 | 10 | 230VAC | 2025-09-03 | 54 800 SEK | |
| AT 2311-300AQR230V | Automation | 300 | 10 | 230VAC | 2025-03-17 | 67 800 SEK |
Vridspjällventil med elektriskt manöverdon för positionering eller begränsad reglering.
Reach datum: 2024-11-22
| Pos | Komponent | Material | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | Hus | Aluminium | ||||||
| 2 | Kåpa* | Aluminium | ||||||
| 3 | Drivbussning | Stål | ||||||
| *Epoxymålad RAL 1014, C4 enligt ISO 12944 | ||||||||
| Pos | Komponent | Material |
|---|---|---|
| 1 | Ventilhus | Gråjärn GJL-250 (GG25) |
| 2 | Spjällskiva | Rostfritt stål AISI 431 (1.4057) |
| 3 | Foder | EPDM (etenpropengummi) |
Enligt specifikation på respektive ingående produkt.
Huvudmaterial: Sammansatt enhet
Ingående material: Sammansatt enhet
Temperatur (°C): -20 - 60
| Artikelnummer | Maximalt moment MAST (Nm) | Anslutning enligt ISO 5211 | Drivbussning | Startström (A) | Effektförbrukning (kW) |
|---|---|---|---|---|---|
| 3941-10-POS | 100 | F05/F07 | 19x19mm | 0.7 | 0.015 |
| 3941-10-POS24VDC | 100 | F05/F07 | 19x19mm | 8 | 0.03 |
| 3941-10-POS400V | 100 | F05/F07 | 19x19mm | 0.5 | 0.03 |
| 3941-15-POS | 150 | F05/F07 | 19x19mm | 1.1 | 0.03 |
| 3941-15-POS24VDC | 150 | F05/F07 | 19x19mm | 8 | 0.03 |
| 3941-15-POS400V | 150 | F05/F07 | 19x19mm | 0.5 | 0.03 |
| 3941-25-POS | 250 | F07/F10 | 19x19mm | 1.4 | 0.04 |
| 3941-25-POS24VDC | 250 | F07/F10 | 19x19mm | 10 | 0.05 |
| 3941-25-POS400V | 250 | F07/F10 | 19x19mm | 0.5 | 0.04 |
| 3941-50-POS | 500 | F07/F10 | 27x27mm | 1.7 | 0.06 |
| 3941-50-POS400V | 500 | F07/F10 | 27x27mm | 0.8 | 0.07 |
| 3941-80-POS | 800 | F10/F12 | 27x27mm | 1.7 | 0.06 |
| 3941-80-POS400V | 800 | F10/F12 | 27x27mm | 0.75 | 0.07 |
Enligt bruksanvisning på ingående produkter.
