Magnetventil for styring av luft til dobbeltvirkende pneumatiske aktuatorer
Temperatur (°C) | -10 - 60 |
---|---|
Hovedmateriale | Aluminium |
Utførelse | Elektrisk On/Off, Pneumatiskt enkelvirkende, Pneumatiskt dobbeltvirkende |
Artikkelnummer | Navn | Strømforsyning | Antall | |
---|---|---|---|---|
AT 107519 | Magnetventil 5/2 Namur, EEx m 230AC 1250 l/min NPT 1/4" | 230VAC | Forespørsel | Tilbud |
AT 107505 | Magnetventil 5/2 Namur, 230VAC+LED 1250 l/min G 1/4" | 230VAC | Forespørsel | Tilbud |
AT 107509 | Magnetventil 5/2 Namur, 24VDC+LED 1250 l/min G 1/4" | 24VDC | Forespørsel | Tilbud |
AT 107516 | Magnetventil 5/2 Namur, EEx ia 24VDC 1250 l/min G 1/4" | 24VDC | Forespørsel | Tilbud |
AT 108709 | Magnetventil 5/2 Namur, without coil 1250 l/min G 1/4" | Forespørsel | Tilbud | |
AT 127212 | Magnetventil Namur 5/2, Ex ia 24VDC 1250 l/min G 1/4" | 24VDC | Forespørsel | Tilbud |
AT 125262 | Magnetventil Namur 3/2, 24VDC 1250l/min G 1/4" | 24VDC | Forespørsel | Tilbud |
AT 128810 | Magnetventil Namur 5/2, without coil 1250 l/min G 1/4" Ex m | Forespørsel | Tilbud | |
AT 128812 | Magnetventil Namur 3/2, without coil 1250 l/min G 1/4" Ex m | Forespørsel | Tilbud |

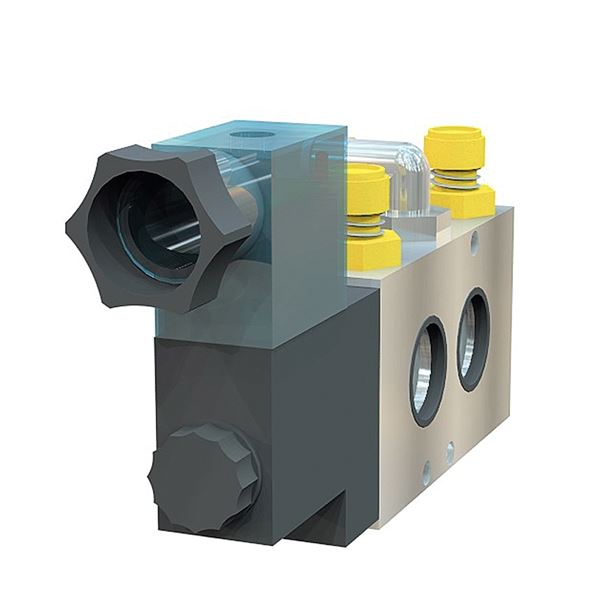

Armatec magnetventil for styring av luft kan anvendes til pneumatiske aktuatorer med NAMUR, f.eks. MNH511
DN | |
---|---|
A |
Ventilen er laget av Aluminium og har en innebygget manual override. Ventilen leveres som standard med kombinert strupeskruer/lyddempere, 6mm slangetilkobling og LED lampe på spolen.
Hovedmateriale: Aluminium
Hovedmaterialets kode: Aluminium (P40)
Inngående materialer: Aluminium, Plast
Inkludert materialkode: Aluminium (P40)
Temperatur (°C): -10 - 60
IP-klassifisering: IP65
Iht. instruksjon på respektive aktuatorer.
